UE4 モジュール追加手順のメモ書き

$
0
0

概要

UnrealEngine のモジュール追加についてのメモ書きです。
エディタ用モジュールの追加手順を記録しています。

環境

Windows10
Visual Studio 2017
UnrealEngine 4.22

参考

以下を参考にさせて頂きました、ありがとうございます。

モジュールについて
【UE4】モジュール追加
https://qiita.com/kanurapoison/items/e4b551a1f22b85162c70
https://qiita.com/go_astrayer/items/5d001a9cde182488f9f3

モジュール追加手順

ファイル追加と設定ファイルの書き換えが必要です。

モジュールソースの作成

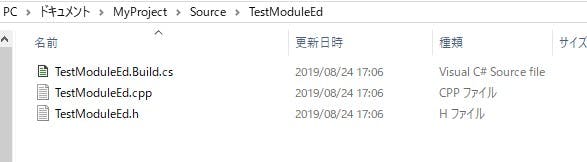

モジュール名を決めてフォルダを作成、それをプロジェクトの[Source]フォルダ以下へ配置する。フォルダには[***.Build.cs][.h][.cpp]のファイルを置く。

以下[TestModuleEd]というモジュールを作成する場合は以下のようになります。


TestModuleEd.Build.cs
namespaceUnrealBuildTool.Rules{publicclassTestModuleEd:ModuleRules{publicTestModuleEd(ReadOnlyTargetRulesTarget):base(Target){PublicIncludePaths.AddRange(newstring[]{"TestModuleEd",// ... add public include paths required here ... });PrivateIncludePaths.AddRange(newstring[]{"TestModuleEd",// ... add other private include paths required here ... });PublicDependencyModuleNames.AddRange(newstring[]{"Core","CoreUObject","Engine",// ... add other public dependencies that you statically link with here ... });PrivateDependencyModuleNames.AddRange(newstring[]{// ... add private dependencies that you statically link with here ... });DynamicallyLoadedModuleNames.AddRange(newstring[]{// ... add any modules that your module loads dynamically here ... });}}}
TestModule.h
#pragma once
#include "CoreMinimal.h"
#include "Modules/ModuleInterface.h"
#include "Modules/ModuleManager.h"
/**
 * The public interface to this module
 */classITestModuleEd:publicIModuleInterface{public:/**
     * Singleton-like access to this module's interface.  This is just for convenience
     * Beware of calling this during the shutdown phase, though.  Your module might have been unloaded already.
     *
     * @return Returns singleton instance, loading the module on demand if needed
     */staticinlineITestModuleEd&Get(){returnFModuleManager::LoadModuleChecked<ITestModuleEd>("TestModuleEd");}/**
     * Checks to see if this module is loaded and ready.  It is only valid to call Get() if IsAvailable() returns true.
     *
     * @return True if the module is loaded and ready to use
     */staticinlineboolIsAvailable(){returnFModuleManager::Get().IsModuleLoaded("TestModuleEd");}};
TestModule.cpp
#include "TestModuleEd/TestModuleEd.h"
classFTestModuleEd:publicITestModuleEd{/** IModuleInterface implementation */virtualvoidStartupModule()override;virtualvoidShutdownModule()override;};IMPLEMENT_MODULE(FTestModuleEd,TestModuleEd)voidFTestModuleEd::StartupModule(){// This code will execute after your module is loaded into memory (but after global variables are initialized, of course.) }voidFTestModuleEd::ShutdownModule(){// This function may be called during shutdown to clean up your module.  For modules that support dynamic reloading, // we call this function before unloading the module. }

ファイル内容の修正

追加したモジュールの情報を反映させるために設定ファイルに追記します。
修正するファイルはエディタ用モジュールを想定し、[MyProject.uproject][MyProject.Build.cs][MyProjectEditor.Target.cs]の3ファイルです。

Modulesに追加します。

MyProject.uproject
{
    "FileVersion": 3,
    "EngineAssociation": "4.22",
    "Category": "",
    "Description": "",
    "Modules": [
        {
            "Name": "MyProject",
            "Type": "Runtime",
            "LoadingPhase": "Default",
            "AdditionalDependencies": [
                "Engine"
            ]
        }
## ここから追加↓、(カンマに注意)
        ,{
            "Name": "TestModuleEd",
            "Type": "Editor",
            "LoadingPhase": "PostEngineInit"
        }
## ここまで↑
    ],
    "Plugins": [
        {
            "Name": "EditorTests",
            "Enabled": true
        },
    ]
}

PublicDependencyModuleNamesに追加します。

MyProject/MyProject.Build.cs
usingUnrealBuildTool;publicclassMyProject:ModuleRules{publicMyProject(ReadOnlyTargetRulesTarget):base(Target){PCHUsage=PCHUsageMode.UseExplicitOrSharedPCHs;PublicDependencyModuleNames.AddRange(newstring[]{"Core","CoreUObject","Engine","InputCore"});PublicDependencyModuleNames.AddRange(newstring[]{"TestModuleEd"});// ←ここを追加PrivateDependencyModuleNames.AddRange(newstring[]{"Slate","SlateCore",});}}

ExtraModuleNameに追加します。

MyProjectEditor.Target.cs
usingUnrealBuildTool;usingSystem.Collections.Generic;publicclassMyProjectEditorTarget:TargetRules{publicMyProjectEditorTarget(TargetInfoTarget):base(Target){Type=TargetType.Editor;ExtraModuleNames.AddRange(newstring[]{"MyProject"});ExtraModuleNames.AddRange(newstring[]{"TestModuleEd"});// ←ここを追加}}

モジュールファイルのソリューションへの追加

[MyProject.uproject]の右クリックメニューから[Generate VisualStudio project files]を実行し、ソリューションを確認し、ビルドする。


エラーが出る場合は、設定を確認する。

UEエディタにて

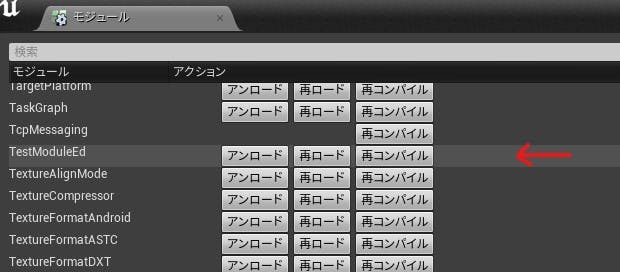

[ウィンドウ] -> [デベロッパーツール] -> [モジュール] に追加したモジュールが表示されます。


まとめ

機能別にモジュール分割をするように推奨されているようですが、依存関係は設計段階で考慮しないと大変なことになります。
EditorUtilityWidget などエディタ専用の機能をC++から使う場合はエディタ専用モジュールを作成は必須になります。
